Low Density Compacting PET PVC PP Granules Making Machine

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: DL-Vacuum feed loader serial

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 6000--70000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 1-2 months

Payment Terms: T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

compacting pvc granules making machine

,

Low density pet granules making machine

,

Low density pp granules making machine

Core Components:
PLC, Bearing, Gearbox, Motor
Screw Design:
Single
Voltage:
380V,50HZ Or As Customer
Plastic Type:
PP/PE
Raw Material Width:
480mm
Automatic Grade:
Automatic
Warranty:
1 Year
Dimension(L*W*H):
8000mm*1500mm*2000mm
Core Components:
PLC, Bearing, Gearbox, Motor
Screw Design:
Single
Voltage:
380V,50HZ Or As Customer
Plastic Type:
PP/PE
Raw Material Width:
480mm
Automatic Grade:
Automatic
Warranty:
1 Year
Dimension(L*W*H):
8000mm*1500mm*2000mm

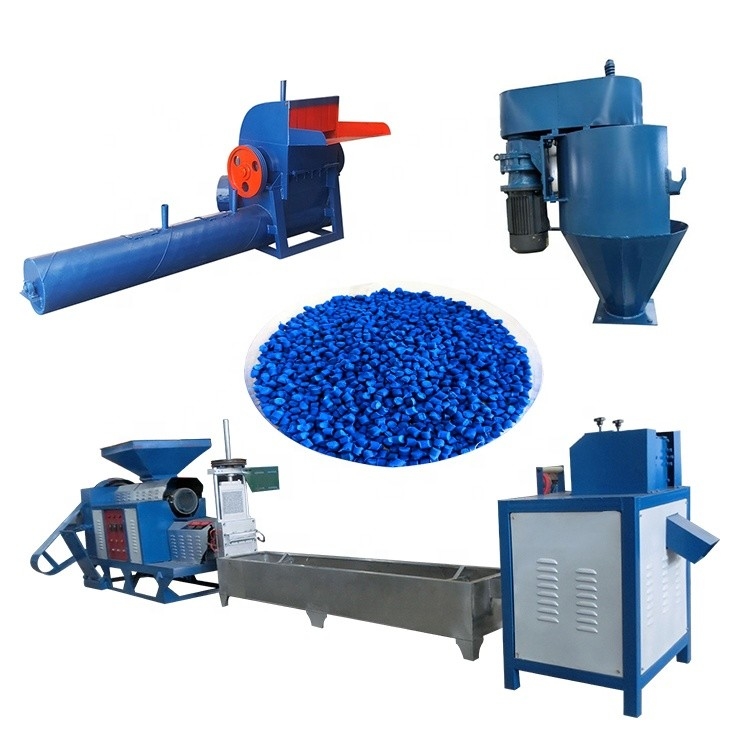

Low Density Compacting PET PVC PP Granules Making Machine

This series compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film, raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic. Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, PPS, EPS, ABS, PA, PLA, PET waste plastic materials recycling field.



Main Features

1. From raw material crushing, cleaning, feeding to pelletizing are all automated, saving you labor costs 2. The screw and barrel are made of imported high-strength, high-quality carbon structural steel, which is durable and prolongs the service life of the machine. 3.Make full use of the high-pressure friction non-stop heating system, automatic heating production, saving electricity and energy for you

Optional

1.Plastic crusher 2.conveyor
Model
DL-100

DL-120



DL-140


DL-160
Output
80-120(kg/h)
150-200(kg/h)
200-300(kg/h)
300-400(kg/h)
Gearbox
173
200
225
280
Screw diameter
100mm
120mm
140mm
160mm
Screw length
2000mm
2400mm
2800mm
3200mm
Motor
22KW
37KW
45KW
55KW
Hydraulic screen changer
220mm*220mm
220mm*220mm
250mm*250mm
250mm*250mm
Temperature control group
5
6
7
8
