4500MM Compound Geomembrane Making Machine Polylam Extrusion Lamination Plant

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: DL-6300

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 350000--650000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 2-3 months

Payment Terms: T/T

Supply Ability: 3 sets per month

Get Best Price
Highlight:

4500MM Compound Geomembrane Making Machine

,

hdpe geotextile machinery

,

Polylam Extrusion Coating Lamination Plant

Name:
Automatic HDPE/LDPE Geotextile Compound Production Line
Raw Material:
LLDPE;HDPE; LDPE
Thickness Of Film:
0.5mm--3mm
Width:
Flexible Width 6000mm
Total Installtion Power:
800--1200kw
Dimension:
25mx12mx4m
Capacity:
800--1200kg/h
Line Speed:
3-8m/ Min
Application:
Water Conservancy;Lanscape Works;AgricultureTransportation Engineering;
After-sales Service:
Rovided: Engineers Available To Service Machinery Overseas
Name:
Automatic HDPE/LDPE Geotextile Compound Production Line
Raw Material:
LLDPE;HDPE; LDPE
Thickness Of Film:
0.5mm--3mm
Width:
Flexible Width 6000mm
Total Installtion Power:
800--1200kw
Dimension:
25mx12mx4m
Capacity:
800--1200kg/h
Line Speed:
3-8m/ Min
Application:
Water Conservancy;Lanscape Works;AgricultureTransportation Engineering;
After-sales Service:
Rovided: Engineers Available To Service Machinery Overseas

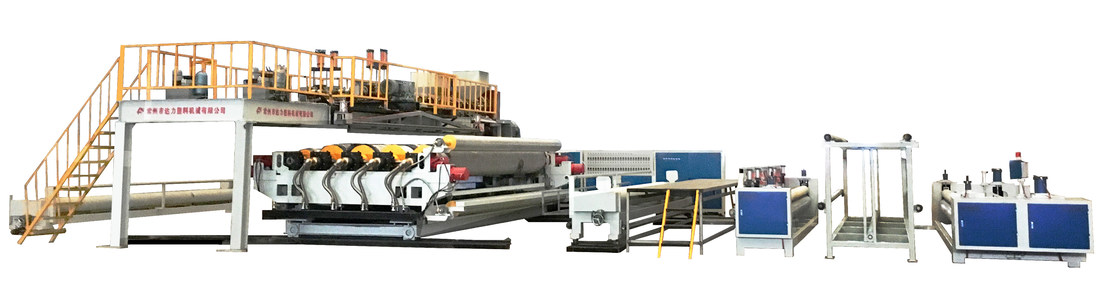

4500MM Compound Geomembrane Making Machine Polylam Extrusion Lamination Plant



Automatic HDPE/LDPE Geotextile compound Production Line

Geotextile compound line is a complete production line adopting calendering compound process to heat,extrude,press,cool LDPEPPPVCEVA and other raw material.It is used for producing monolayer or multilayer compound film for all kinds of geotexitlenon-woven fabric weaving fabric. Also it can produce geotextile flashing,etc.





Usage: Sanitation Project(MSW landfill,sewage treatment,toxic and hazardous compounds disposal sites storage of dangerous goods);Water Conservancy(rivers,lakes water reservoir dam seepage control and stopping leaks and consolidation and the impermemeable

drains);Construction Projects(subwayconstruction,building underground engineering and the roof garden impermeable,sewage pipe linging);Landscape Works(artificial lake,pool);Agricutural Engineering(reservoir,drinking water tanks,water storage pound the irrigation system impervious);Transportation(highway) and so on.



Main technical parameters :
Suitable fabrics
Geotextile,Plastic woven fabrics,Non woven fabrics
Model and specifications
3300
4500
6300 8300
Laminate layers
one farbric one film,two fabrics one film,flashing
Thickness of compound film (mm)
0.2-2.5
Flashing thickness(mm)
0.5-2.5
Main machine power(kw)
75 - 150
Specifications of embossing roller (mm)
400×3300
500×4500
600×6300
800×8300
Max. compound width
3000
4200
6000 8000
Cooling method
Circulating water cooling
The machine can be designed and manufactured according to the customer's requirement.
